F2911

High Reliability SPST Absorptive RF Switch

Datasheet

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Single-pole, single-throw with an absorptive termination on RF2 when isolated
  • High-performance RF
    • Isolation of 53dB at 1200MHz
    • Insertion loss of 0.30dB at 1200MHz
  • Return loss: 23dB
  • High linearity:
    • IIP2/IIP3: 120dBm/64dBm
    • CSO/CTB: -95dBC
  • Single 2.7V to 5.50V supply voltage
  • 3.3V and 1.8V compatible control logic
  • Operating temperature -40 °C to +105 °C

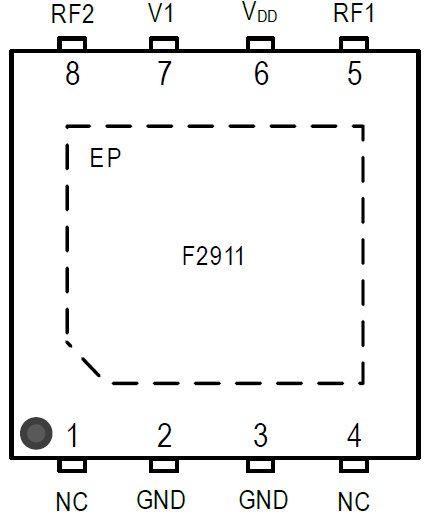

  • 2mm x 2mm 8-VFQFP-N package

The F2911 is a rugged, low insertion loss, 75Ω single-pole, single-throw (SPST) absorptive RF switch designed for a multitude of CATV/Broadband applications. This device covers a broad frequency range from 1MHz to 3500MHz. In addition to providing low insertion loss, the F2911 also delivers excellent linearity and isolation performance while providing a 75Ω termination to the RF2 port when isolated.

Design & Development (Boards and Kit)

Board Image

Evaluation Board for High Reliability SPST Absorptive RF Switch

The F2911EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2911 RF switch.

“Thru” calibration connectors are conveniently located on the evaluation board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the V1 control pin as outlined in the F2911 datasheet. DC power, ground and V1 control voltages are applied to the pin header. A bypass capacitor has been added to the evaluation board to achieve best performance from 1MHz to 3500MHz, as described in the applications circuit section of the datasheet.

Learn more
Filters
to

Part Numbers

F2911NBGP

View Datasheet
View Block Diagram
View Details

F2911NBGP8

View Datasheet
View Block Diagram
View Details
