F2913

High Isolation SPDT Absorptive Switch

Datasheet

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Low insertion loss: 0.79dB at 2GHz
  • High isolation:
  • 71dB at 1GHz
  • 65dB at 2GHz
  • 58dB at 4GHz
  • High IIP3: +65dBm at 2.6GHz
  • Supply voltage: +2.7V to +5.5V
  • 1.8V and 3.3V compatible control logic
  • Operating temperature: -40°C to +110°C

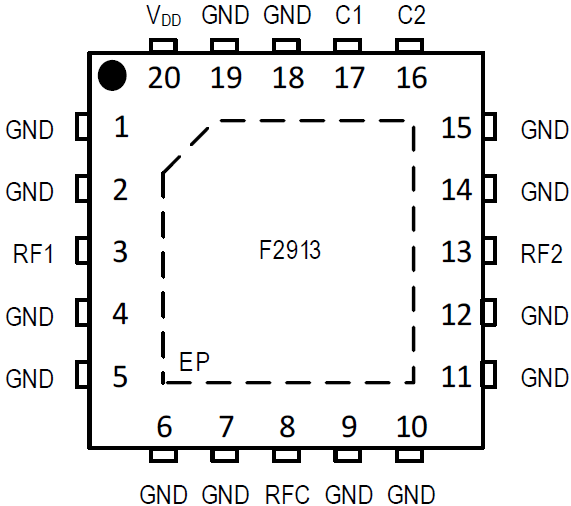

  • 4 × 4mm 20-QFN package

The F2913 is a high isolation, low insertion loss, 50Ω SPDT (SP2T) absorptive RF switch designed for a multitude of wireless and RF applications. This device covers a broad frequency range of 50MHz to 6000MHz. In addition to providing low insertion loss, the F2913 also delivers high linearity and high isolation performance while providing a 50Ω termination at all RF ports. The F2913 uses a single positive supply voltage of +2.7V to +5.5V and supports three states using either +1.8V or +3.3V control logic.

Design & Development (Boards and Kit)

Board Image

Evaluation Board for F2913 High Isolation SPDT Absorptive Switch

The F2913EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product.

“Thru” calibration connectors are conveniently located on the evaluation board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.


Learn more
Filters
to

Part Numbers

F2913NLGK

View Datasheet
View Block Diagram
View Details

F2913NLGK8

View Datasheet
View Block Diagram
View Details
