F2914

High Reliability SP4T RF Switch

Datasheet

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Four symmetric broadband, absorptive RF ports
  • Constant Impedance, Kz, feature
  • High-performance RF
    • Isolation of 54dB at 2700MHz
    • Insertion Loss of 1.15dB at 2700MHz
  • High continuous RF CW Power Handling
    • Selected RF path: 33dBm
    • Terminated RF path: 27dBm
  • High linearity:
    • IIP2 of 114dBm
    • IIP3 of 59.5dBm
  • Single 2.7V to 5.50V supply voltage
  • External Negative Supply Option
  • 3.3V and 1.8V compatible control logic
  • Operating temperature -40 °C to +105 °C
  • 4mm x 4mm 24-pin QFN package

The F2914 is a high reliability, low insertion loss, 50Ω SP4T absorptive RF switch designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 50MHz to 8000MHz. In addition to providing low insertion loss, the F2914 also delivers excellent linearity and isolation performance while providing a 50Ω termination to the unused RF ports. The F2914 also includes a patent-pending constant impedance (Kz) feature. Kz improves hot switching ruggedness, minimizes LO pulling in VCOs, and reduces phase and amplitude variations in distribution networks. It is also ideal for dynamic switching/selection between two or more amplifiers while avoiding damage to upstream/downstream sensitive devices such as PAs and ADCs.

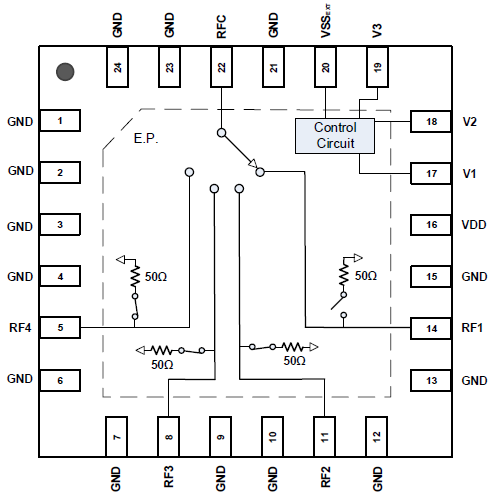

The F2914 uses a single positive supply voltage supporting three logic control pins using either 3.3V or 1.8V control logic. Connecting a negative voltage to pin 20 disables the internal negative voltage generator and becomes the negative supply.

Design & Development (Boards and Kit)

Board Image

Evaluation Board for High Reliability SP4T Absorptive RF Switch

The F2914EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2914 RF switch.

“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RF1, RF2, RF3, and RF4) can be connected to RFC by applying the correct control logic voltage to the V1, V2 and V3 control pins as outlined in the F2914 datasheet. The Vssext feature gives the customer the option to supply an external negative voltage to the Vssext header pin to shut down the internal charge pump for low spur operation.

Filters
to

Part Numbers

F2914NBGK

View Datasheet
View Block Diagram
View Details

F2914NBGK8

View Datasheet
View Block Diagram
View Details
