F2923

Constant Impedance K|z| SP2T RF Switch

Datasheet

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Constant Impedance K|z| during transition
  • Very low insertion loss: 0.48dB at 2GHz
  • High Input IP3: 66dB at 2GHz
  • RF1/RF2 to RF_Com Isolation: 74dB at 2GHz
  • 1-pin or 2-pin device control option
  • Low DC current: 127µA using 3.3V logic
  • Supports 1.8V and 3.3V control logic
  • Extended temperature: -55 °C to +105 °C
  • 4mm x 4mm, 20-pin TQFN package
  • Industry-standard footprint and pin compatible with the F2912

The F2923 is a low insertion loss 50Ω SP2T (SPDT) absorptive RF switch designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 300kHz to 8000MHz. In addition to providing low insertion loss, industry-leading isolation at 2GHz, and excellent linearity, the F2923 also includes a patent-pending constant impedance (K|z|) feature.

Design & Development (Boards and Kit)

Board Image

Evaluation Board for F2923 SP2T with Constant Impedance, K|z|

The F2923EVBI is a fully populated evaluation board which allows the customer to easily evaluate the product.

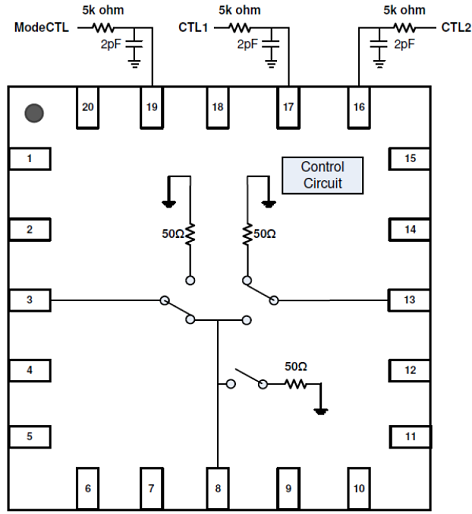

“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RFC, RF1 and RF2) can be connected to RFC by applying the correct control logic voltage to the V1 and V2. The Mode Control pin 19 allows the part to be configured for either 1 pin or 2 pin control.

Learn more
Filters
to

Part Numbers

F2923NCGI

View Datasheet
View Block Diagram
View Details

F2923NCGI8

View Datasheet
View Block Diagram
View Details
