F2977

High Linearity Broadband SP2T 30MHz to 6GHz RF Switch

Datasheet

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Low insertion loss
    • 0.38dB at 2.4GHz
    • 0.45dB at 6GHz
  • High Isolation:
    • 34dB at 2.4GHz
    • 26dB at 6GHz
  • High Linearity:
    • IIP2 +120dBm at 2.4GHz
    • IIP3 +77dBm at 2.4GHz
  • P0.1dB compression of +40dBm
  • Second Harmonic: -86dBc at Fin = 1.8GHz, Pin = 33dBm
  • Third Harmonic: -89dBc Fin = 1.8GHz, Pin = 33dBm

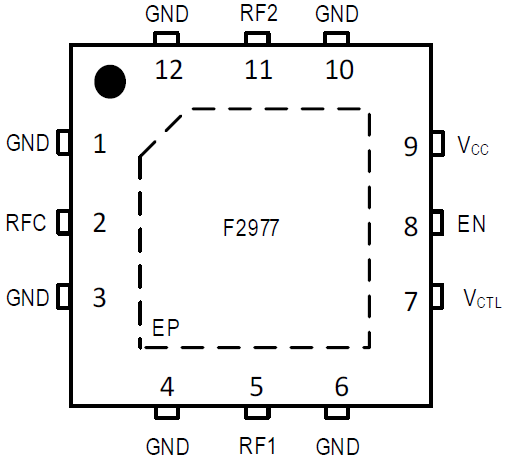

The F2977 is a 50Ω single-pole double-throw (SP2T) reflective RF switch featuring high linearity and wide bandwidth. This device is optimized from 30MHz to 6GHz to support a multitude of wireless RF applications. The F2977 uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.

Design & Development (Boards and Kit)

Board Image

50 ohm Evaluation Board for F2977 High Linearity Broadband SP2T RF Switch

The F2977EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product.

“Thru” calibration connectors are conveniently located on the evaluation board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground, enable and the control voltages are applied to the pin header.

Learn more
