調製器和解調器

Axiro Zero-Distortion™ 和 Glitch-Free™ 接腳相容 IQ 解調器產品提供世界上最低功耗和最低 IM3 失真，同時在 MSB 增益轉換期間產生小於 0.5dB 的過衝振鈴。同樣，Axiro Zero-Distortion™ IQ 調製器產品提供非常高的 IP3 和 IP2 性能，與競爭設備相比具有出色的 ACLR 性能。

联系销售人员

产品选择器

帮助
Filters

部件号s (7)

F1300

DPD Demodulator - 550MHz to 1150MHz

Input Freq Mhz

1150-550

Output Freq Mhz

350-20

Supply Voltage

5.25-4.75

Packaging 类型

VFQFPN

Lead Count

36

Lo Injection Side

高 or Low

Output Ip3

43

Gain

12.5

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1325

DPD Demodulator - 600MHz to 1150MHz

Input Freq Mhz

-

Output Freq Mhz

-

Supply Voltage

-

Packaging 类型

-

Lead Count

-

Lo Injection Side

-

Output Ip3

-

Gain

-

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1350

DPD Demodulator - 1300MHz to 2900MHz

Input Freq Mhz

2900-1300

Output Freq Mhz

500-20

Supply Voltage

5.25-4.75

Packaging 类型

VFQFPN

Lead Count

36

Lo Injection Side

高 or Low

Output Ip3

41

Gain

12.5

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1358

高-Frequency Band DPD Demodulator with Integrated DSA and RF Switch

Input Freq Mhz

4000-3200

Output Freq Mhz

500-20

Supply Voltage

5.25-4.75

Packaging 类型

VFQFPN

Lead Count

36

Lo Injection Side

3100 - 3800MHz

Output Ip3

42

Gain

9.9

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1370

高-Band DPD Demodulator with Integrated DSA and RF Switch

Input Freq Mhz

-

Output Freq Mhz

-

Supply Voltage

-

Packaging 类型

-

Lead Count

-

Lo Injection Side

-

Output Ip3

-

Gain

-

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1375

DPD Demodulator - 1300MHz to 2900MHz

Input Freq Mhz

-

Output Freq Mhz

-

Supply Voltage

-

Packaging 类型

-

Lead Count

-

Lo Injection Side

-

Output Ip3

-

Gain

-

Power Typical Mw

-

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

F1653

Broadband ZIF/CIF I/Q Modulator for 高 订单 LTE MIMO Systems

Input Freq Mhz

600-0

Output Freq Mhz

2900-600

Supply Voltage

3.45-3.15

Packaging 类型

VFQFPN

Lead Count

24

Lo Injection Side

高 or Low

Output Ip3

36

Gain

3

Power Typical Mw

590

查看 数据表
查看 Block Diagram
Request Sample
查看 细节

产品选择器

所有过滤器
帮助
全屏
Part Number (7)
Input Freq Mhz
Output Freq Mhz
Supply Voltage
Packaging 类型
Lead Count
Lo Injection Side
Output Ip3
Gain
Power Typical Mw

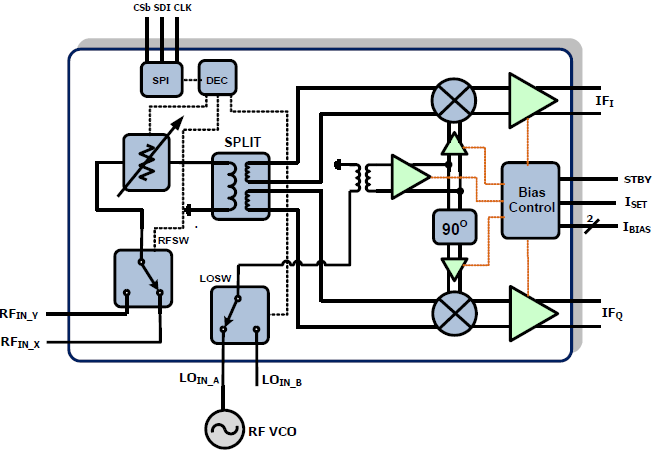

F1300
DPD Demodulator - 550MHz to 1150MHz
1150-550 350-20 5.25-4.75 VFQFPN 36 高 or Low 43 12.5 -
F1325
DPD Demodulator - 600MHz to 1150MHz
- - - - - - - - -

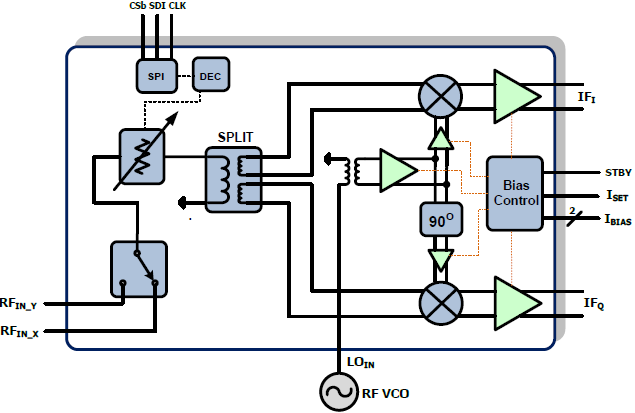

F1350
DPD Demodulator - 1300MHz to 2900MHz
2900-1300 500-20 5.25-4.75 VFQFPN 36 高 or Low 41 12.5 -

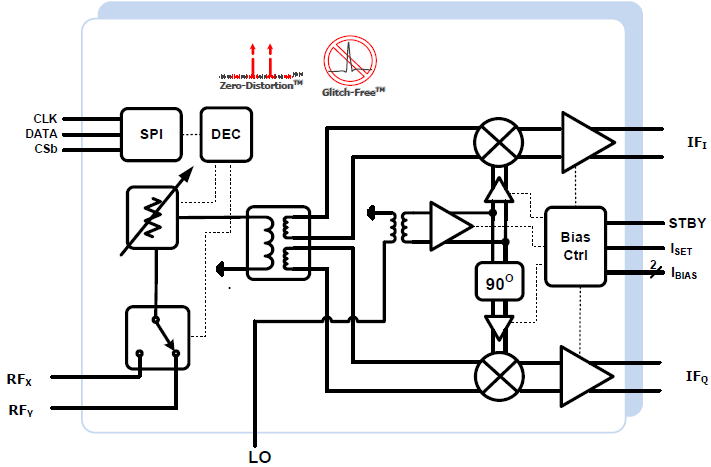

F1358
高-Frequency Band DPD Demodulator with Integrated DSA and RF Switch
4000-3200 500-20 5.25-4.75 VFQFPN 36 3100 - 3800MHz 42 9.9 -

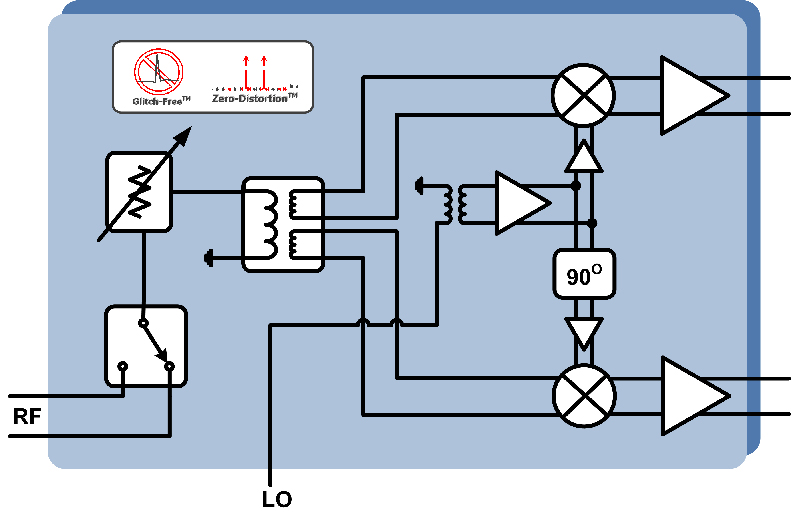

F1370
高-Band DPD Demodulator with Integrated DSA and RF Switch
- - - - - - - - -

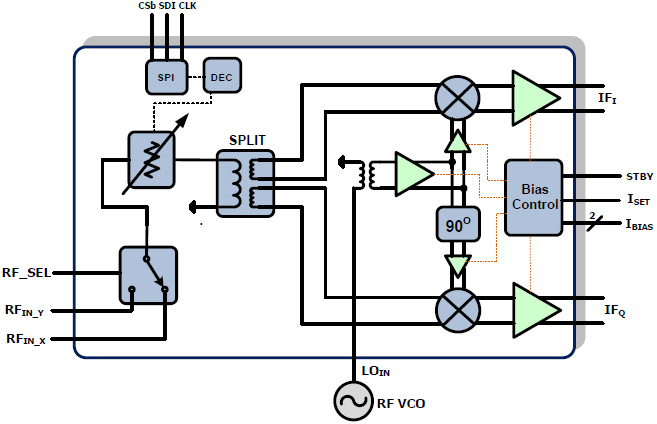

F1375
DPD Demodulator - 1300MHz to 2900MHz
- - - - - - - - -

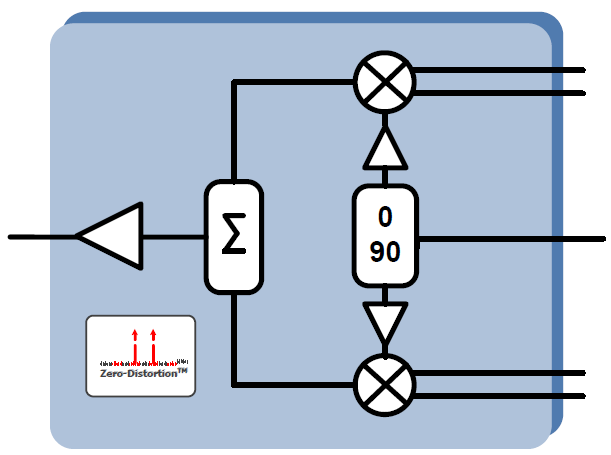

F1653
Broadband ZIF/CIF I/Q Modulator for 高 订单 LTE MIMO Systems
600-0 2900-600 3.45-3.15 VFQFPN 24 高 or Low 36 3 590
