F1300

DPD Demodulator - 550MHz to 1150MHz

产品详情

0
1
0thubnail
1thubnail
  • Wide flat performance IF BW
  • Wide RF BW (~ 0.8GHz)
  • Ideal for multi-carrier systems
  • Drives ADC directly
  • Ultra linear +43dBm OIP3
  • Excellent ACLR performance
  • 200Ω differential output impedance
  • Fully integrated DPD demodulator

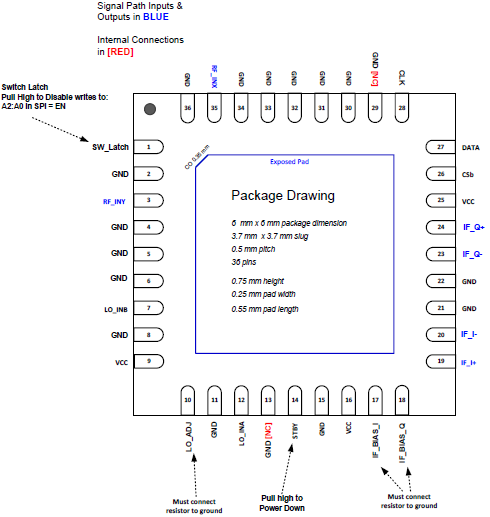

  • 6 x 6 mm, 36-pin VFQFPN package
  • Standby mode with fast recovery
  • ICC: 262mA

The F1300 is a Digital Pre-Distortion Demodulator for PA linearization typically used in base stations to significantly improve the ACLR and/or power consumption of the full TX system in base stations transmitter 应用s.

产品文档

数据表

2025-08-04

F1300 数据表

pdf | 1.58 MB
帮助
Filters
to

部件号s (2)

F1300NBGI

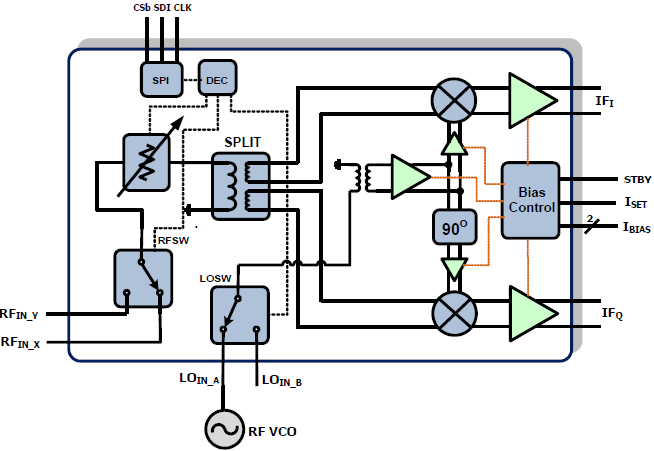

查看 Block Diagram
查看 细节

F1300NBGI8

查看 Block Diagram
查看 细节
