80HSPS1616

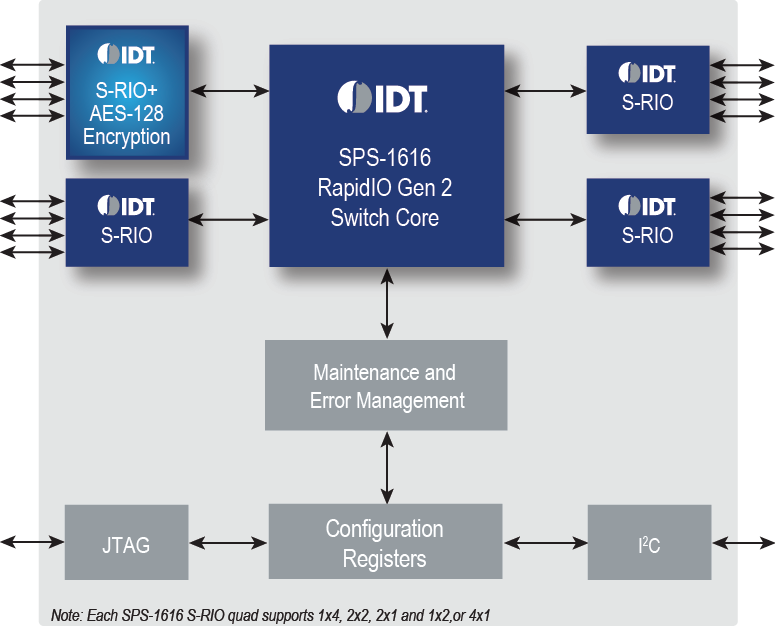

The IDT SPS-1616 Security Enabled Serial RapidIO Gen2 switch is designed for systems that need RapidIO links to go from chassis to chassis with out-of the-box cabling requiring secure/encrypted packets. Using AES-128 encryption the SPS-1616 allows Wireless 基础设施 design engineers to create scalable, stackable systems with up to 20 Gbps between chassis, without having to use expensive encryption cable processors that induce 高 latency due to software involvement. With the SPS-1616 the security requirements for LTE can be met, while keeping up with line rate between chassis. The SPS-1616 特征 one quad with Security Capability with the 其他 three quads 支持ing standard RapidIO only for inside-the-box links.

In addition to the above, the SPS-1616 支持s all RapidIO 特征 available in the pin-compatible CPS-1616 including a full, non-blocking bandwidth of 80 Gbps for up to 16x1 ports. The device uses a 5th generation switch fabric, building upon IDT's Gen 1 switching architecture. This new switch uses patent-pending 特征 to minimize latency, ensure scheduling fairness, and provide superior multicast throughput. The additional security feature has zero impact to latency and throughput.
