产品详情
- RF 范围: 1.8GHz to 6.4GHz
- 35.5dB typical gain at 2.6GHz in low-gain mode
- 39.5dB typical gain at 2.6GHz in 高-gain mode
- 2.5dB NF at 2.6GHz
- 50Ω single-ended input and output impedances
- 5V power supply
- 75mA quiescent current consumption
- 1.8V Logic compatible Standby Mode for power savings
- Operating temperature (TEPAD) 范围: -40°C to +115°C

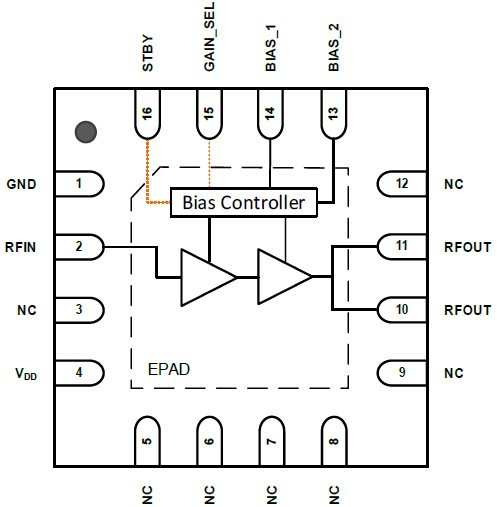

- 3 × 3 mm 16-VFQFPN package
The F1490 is a 高-gain, two-stage RF amplifier designed to operate within the 1.8GHz to 6.4GHz frequency 范围. Using a single 5V power supply, the F1490 provides two 选择able gain modes (35.5dB and 39.5dB), 2.5dB of Noise Figure and 24dBm OP1dB at 2.6GHz.
The F1490 is packaged in a 3mm × 3mm, 16-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path.
5G Sub-6GHz massive MIMO
Wireless 基础设施 base stations
FDD or TDD systems
Point-to-point 基础设施
Public safety 基础设施
Military handhelds
Repeaters and DAS
General purpose RF
