F0110

Dual Path Ultra-Low Noise Amplifier - 1.5GHz to 2.3GHz

Datasheet Contact sales

Product Details

0
1
0thubnail
1thubnail
  • 1500MHz to 2300MHz operating range
  • 18.5dB typical gain
  • Less than 0.6dB NF
  • 50Ω single-ended input/output impedances
  • +5V power supply
  • ICC = 55mA per channel
  • Independent channel standby modes for power savings
  • 1.8V logic standby control
  • Operating temperature (TEP) range: -40 °C to +105 °C
  • 4mm × 4mm, 16-VFQFPN package

The F0110 is a dual path 1500MHz to 2300MHz high gain/ultra-low noise amplifier used in receiver applications.

The F0110 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain. The device uses a single 5V supply and 120mA typical of total ICC.

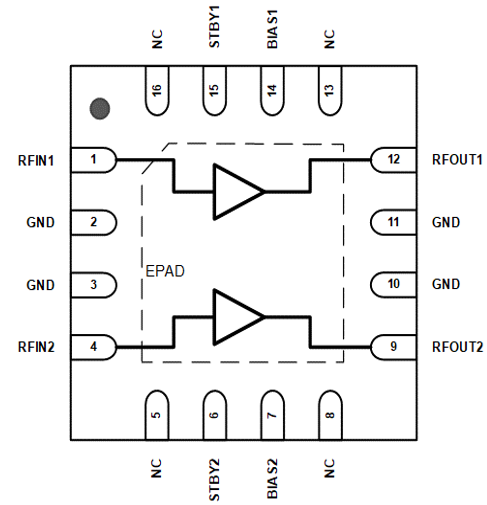

The F0110 is packaged in a 4mm x 4mm, 16-pin VFQFPN with 50Ω single-ended RF input and output impedances for ease of integration into the signal path.

  • 3G, 4G, 5G wireless infrastructure
  • Public safety infrastructure
  • General-purpose RF

Product Documents

Datasheet

2025-06-01

F0110 Datasheet

pdf | 778.72 KB

Design & Development (Boards and Kit)

Board Image

Evaluation Board for F0110 RF Amplifier

The F0110EVB is a fully populated evaluation board specifically designed to evaluate the F0110 RF Amplifier.

Learn more
