Ever-increasing demand by consumers for more data at higher throughput continues to drive systems standards to evolve to address these needs across multiple markets segments and applications. These evolving standards require RF components with much higher RF performance that will improve a system’s Signal to Noise Ratio, SNR, to increase data rates and throughput.
CONTACT SALESConstant Impedance K|z| SPST RF Switch 30 MHz to 8000 MHz
Supply Voltage
5.5-2.7
Frequency Range
8000-30
Advanced Features
Constant Impedance (Kz)RF2 absorptive when unused50Ω port impedance
Input Ip3
65
Loss Db
0.55
Isolation Db
51
Packaging Type
VFQFPN
Lead Count
8
Architecture
-
Gain
-
Output Impedance
-
High Reliability SPST Absorptive RF Switch
Supply Voltage
5.5-2.7
Frequency Range
3500-1
Advanced Features
Absorptive on RF275Ω port impedance
Input Ip3
64
Loss Db
0.3
Isolation Db
51
Packaging Type
VFQFPN
Lead Count
8
Architecture
-
Gain
-
Output Impedance
-

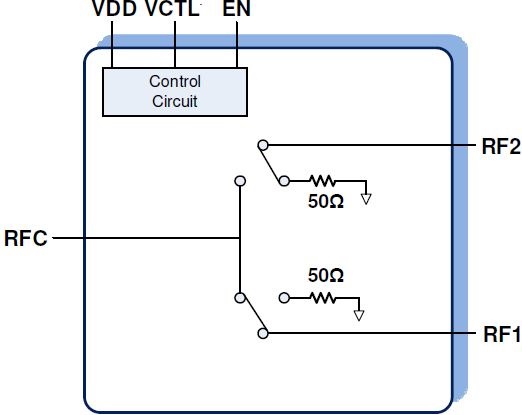

High Reliability SPDT RF Switch
Supply Voltage
3.6-2.7
Frequency Range
9000-0.01
Advanced Features
Absorptive unused port50Ω port impedance
Input Ip3
65
Loss Db
0.43
Isolation Db
59
Packaging Type
-
Lead Count
-
Architecture
SPDT
Gain
-
Output Impedance
-
High Isolation SPDT Absorptive Switch
Supply Voltage
5.5-2.7
Frequency Range
6000-50
Advanced Features
High Isolation
Input Ip3
65
Loss Db
0.79
Isolation Db
71
Packaging Type
VFQFPN
Lead Count
20
Architecture
-
Gain
-
Output Impedance
-

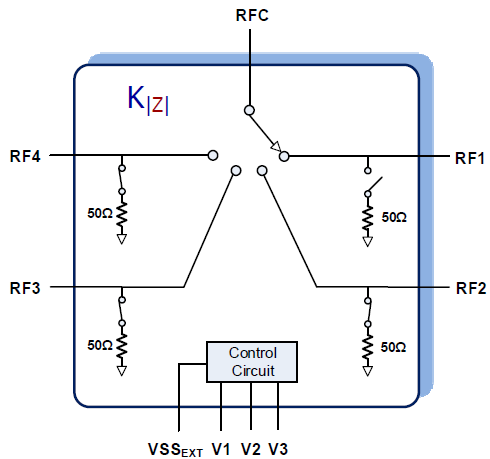

High Reliability SP4T RF Switch
Supply Voltage
5.5-2.7
Frequency Range
8000-50
Advanced Features
Constant Impedance (Kz)Absorptive unused port50Ω port impedance
Input Ip3
59.5
Loss Db
0.9
Isolation Db
62
Packaging Type
VFQFPN
Lead Count
24
Architecture
-
Gain
-0.9
Output Impedance
-
High Reliability SP5T RF Switch
Supply Voltage
5.5-2.7
Frequency Range
8000-50
Advanced Features
Constant Impedance (Kz)Absorptive unused port50Ω port impedance
Input Ip3
60
Loss Db
0.93
Isolation Db
62
Packaging Type
VFQFPN
Lead Count
24
Architecture
-
Gain
-0.9
Output Impedance
-
Constant Impedance K|z| SP2T RF Switch
Supply Voltage
3.5-3.1
Frequency Range
8000-0
Advanced Features
Constant Impedance (Kz)Absorptive unused port50Ω port impedance
Input Ip3
66
Loss Db
0.48
Isolation Db
74
Packaging Type
-
Lead Count
-
Architecture
SPDT
Gain
-0.48
Output Impedance
-
High Reliability SP2T RF Switch
Supply Voltage
5.5-2.7
Frequency Range
8000-50
Advanced Features
Absorptive unused port50Ω port impedance
Input Ip3
64
Loss Db
0.73
Isolation Db
70
Packaging Type
VFQFPN
Lead Count
16
Architecture
-
Gain
-0.73
Output Impedance
-
High Reliability SP2T RF Switch
Supply Voltage
5.5-2.7
Frequency Range
8000-50
Advanced Features
Absorptive unused port50Ω port impedance
Input Ip3
64
Loss Db
0.73
Isolation Db
70
Packaging Type
VFQFPN
Lead Count
16
Architecture
-
Gain
-0.73
Output Impedance
-
High Reliability SP2T RF Switch 50MHz to 6000MHz
Supply Voltage
-
Frequency Range
-
Advanced Features
-
Input Ip3
-
Loss Db
-
Isolation Db
-
Packaging Type
-
Lead Count
-
Architecture
-
Gain
-
Output Impedance
-
High Linearity Broadband SP2T WiFi 100MHz to 8GHz RF Switch
Supply Voltage
5.5-2.7
Frequency Range
8000-100
Advanced Features
Reflective unused port50Ω port impedance
Input Ip3
69
Loss Db
0.58
Isolation Db
44
Packaging Type
DFN
Lead Count
6
Architecture
-
Gain
-
Output Impedance
-
High Reliability SP5T RF Switch
Supply Voltage
5.25-2.7
Frequency Range
8000-50
Advanced Features
High Reliability
Input Ip3
60.5
Loss Db
1.1
Isolation Db
49
Packaging Type
VFQFPN
Lead Count
24
Architecture
-
Gain
-
Output Impedance
50
75 ohm SP2T RF Switch
Supply Voltage
3.6-2.7
Frequency Range
3000-5
Advanced Features
Absorptive unused port75Ω port impedance
Input Ip3
63
Loss Db
0.32
Isolation Db
68
Packaging Type
VFQFPN
Lead Count
20
Architecture
-
Gain
-
Output Impedance
-
75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination
Supply Voltage
3.6-2.7
Frequency Range
3000-5
Advanced Features
Absorptive unused port75Ω port impedance
Input Ip3
63
Loss Db
0.45
Isolation Db
65
Packaging Type
VFQFPN
Lead Count
20
Architecture
-
Gain
-
Output Impedance
-
High Linearity Broadband SP2T RF Switch
Supply Voltage
5.25-2.5
Frequency Range
10000-5
Advanced Features
Reflective unused port50Ω port impedance75Ω port impedance
Input Ip3
77
Loss Db
0.36
Isolation Db
38
Packaging Type
VFQFPN
Lead Count
12
Architecture
-
Gain
-
Output Impedance
5075
High Linearity Broadband SP2T RF Switch
Supply Voltage
5.25-2.5
Frequency Range
10000-5
Advanced Features
Reflective unused port50Ω port impedance75Ω port impedance
Input Ip3
77
Loss Db
0.36
Isolation Db
38
Packaging Type
VFQFPN
Lead Count
12
Architecture
-
Gain
-
Output Impedance
5075
High Linearity Broadband SP2T 30MHz to 6GHz RF Switch
Supply Voltage
5.25-2.7
Frequency Range
6000-30
Advanced Features
Reflective unused port50Ω port impedance
Input Ip3
77
Loss Db
0.36
Isolation Db
38
Packaging Type
VFQFPN
Lead Count
12
Architecture
-
Gain
-
Output Impedance
-
