Product Details
- Dual Path RF amp and DSAs for diversity/MIMO receivers
- RF: 400MHz to 2700MHz
- < 2dB overshoot between DSA transitions
- 11.6dB typical max gain at 900MHz
- DSA0 is a single 6dB coarse step
- DSA1 has 23dB total gain range in 1dB steps
- DSA2 has 18dB gain range in 6dB steps
- +41dBm OIP3 at 2000MHz
- 4.7dB Noise Figure at 900MHz
- +5V supply voltage
- ICC = 245mA
- Independent standby: 7mA standby current

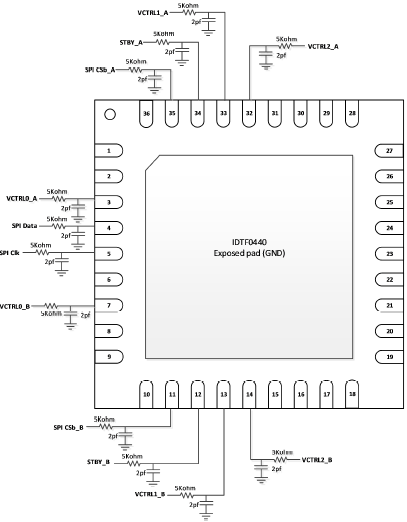

- SPI interface for DSA1
- 1-bit control for DSA0
- -bit control for DSA2
- 50Ω input and output impedance
- Broadband, internally matched
- 6mm x 6mm, 36-pin TQFN package

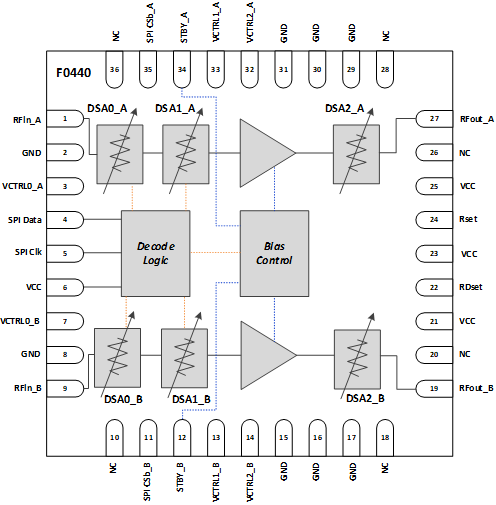

The F0440 400MHz to 2700MHz dual RF digital variable gain amplifier (DVGA) is designed for use in receivers. The device provides two independent receiver paths each with 11.6dB typical maximum gain and 4.7dB noise figure in the low-band configuration designed to operate with a single +5V supply. For each path Gain control is split into three separate attenuators; DSA0 is a single 6dB step using a single control pin, DSA1 includes 23dB SPI-controlled gain adjustment in 1dB steps, and DSA2 includes 18dB attenuation in 6dB steps controlled using two control pins. F0440 offers +40dBm nominal output IP3 using 245mA total ICC.
This device is packaged in a 6mm x 6 mm, 36-pin TQFN with 50Ω single-ended RF input and RF output impedances for ease of integration into the signal-path lineup for each of the two paths.
- Multi-mode/Multi-carrier receivers
- PCS1900 base stations
- DCS1800 base stations
- WiMAX and LTE base stations
- UMTS/WCDMA 3G base stations
- PHS/PAS base stations
- Distributed antenna systems
- Digital radio
Design & Development (Boards and Kit)
.png)
Evaluation Board for F0440 Dual Matched Broadband RF DVGA
The F0440EVB is a fully populated evaluation board which allows the customer to easily evaluate the F0440 Dual Matched Broadband RF DVGA. The attenuation setting may be set using the F0440's serial control input. Header pins on the evaluation board allow setting standby mode without off-board connections to the control inputs.
