Product Details
- Gain at 2.6GHz
- 34dB typical in High Gain Mode
- 28dB typical in Low Gain Mode
- 1.6dB NF at 2.6GHz
- +23dBm OIP3 at 2.6GHz
- OP1dB at 2.6GHz
- +15dBm in High Gain Mode
- +14dBm in Low Gain Mode
- 50Ω single-ended input/output amplifier impedances
- IDD = 130mA
- Independent Standby Mode for power savings
- Supply voltage: +3.15V to +3.45V
- 6mm × 6 mm, 32-pin LGA package
- -40 °C to +105 °C exposed pad operating temperature range
The F0452C is an integrated dual-path RF front-end consisting of an RF switch and two gain stages with 6dB gain control used in the analog front-end receiver of an Active Antenna System (AAS).
The F0452C provides 34dB gain with +23dBm OIP3, +15dBm output P1dB, and 1.6dB noise figure (NF) at 2.6GHz. Gain is reduced 6dB in a single step with a maximum gain settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD.
The F0452C is offered in a 6mm × 6mm × 0.8 mm, 32-pin LGA package with 50Ω input and output amplifier impedances for ease of integration into the signal path.
Design & Development (Boards and Kit)
.png)

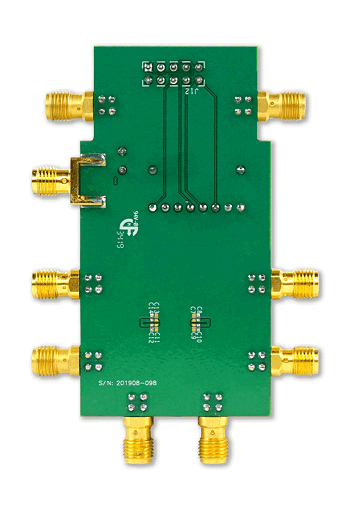

Evaluation Board for F0452C RF DVGA
The F0452CEVB is a fully populated test board enabling easy evaluation of the F0452C RF Switch / LNA performance.
