Product Details
- Broadband 2100MHz to 2950MHz
- 32.1dB max gain
- 3.9dB NF @ max gain (2650MHz)
- 31.5dB total gain control range, 0.5dB step
- < 2 dB overshoot between major gain transitions
- +38dBm OIP3
- Maintains +21.5dBm output P1dB over 13dB gain adjustment range

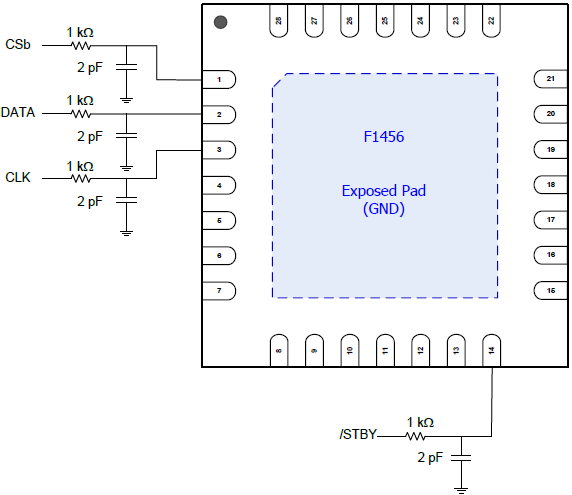

- SPI interface for DSA control
- Single 5V supply voltage
- ICC = 215mA
- Up to +105 °C TCASE operating temperature
- 50Ω input and output impedance
- Standby for power savings
- Pin compatible 700–1100MHz and 1400–2300MHz versions

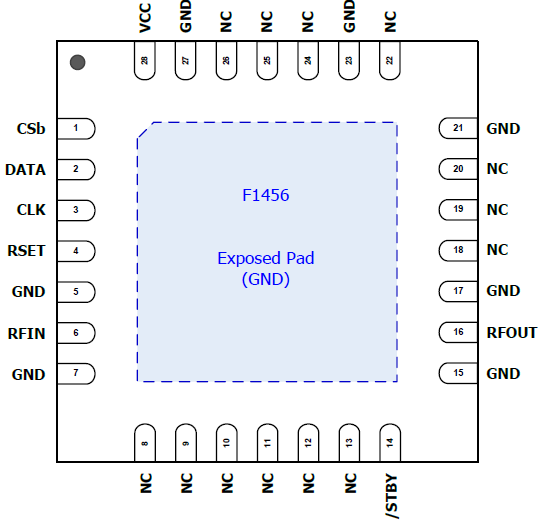

- 6 × 6 mm, 28-QFN package
The F1456 is a High-Gain/High-Linearity 2100MHz to 2950MHz TX Variable Gain Amplifier used in transmitter applications. The F1456 TX VGA provides 32.1dB maximum gain with +38dBm OIP3 and 3.9dB noise figure. Up to 31.5dB gain control is achieved using the combination of a digital step attenuator (DSA) plus KLIN™ RF variable gain amplifier gain adjustment. This device uses a single 5V supply and 215mA of ICC. This device is packaged in a 6 × 6 mm, 28-QFN with 50Ω single-ended RF input and RF output impedances for ease of integration into the signal path.
Design & Development (Boards and Kit)
Evaluation Kit for F1456 TX VGA

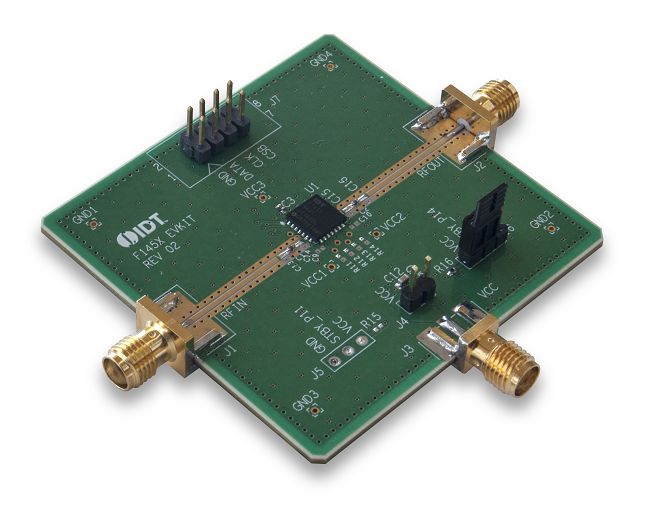

The F1456EVBK is a fully populated evaluation board that allows the customer to easily evaluate the F1456 TX RF Digital Variable Gain Amplifier. Attenuation is set using SPI.
The F1456EVSK is a complete hardware and software solution that allows customers to digitally control the F1456EVBK with the USB output on a computer. The kit includes the F1456EVBK board, as well as a USB Digital Control Board, and interface cables. The software, guides , and instructional videos are available for download/viewing on this page.
Part Numbers (2)
F1456NKGK
F1456NKGK8
